AX5689

Digital Audio Converter and Amplifier Controller

AX5689 Features

* General features: - 4-channel BTL digital Class-D amplifier controller with digital inputs - 8 differential low-latency ADCs with a 115 dB dynamic range - 8 programmable digital loop-filter slices - 8 CMOS level PWM outputs, configurable as 4 BTL channels - Feedback loop possible after the out

AX5689 General Description

The AX5689 is a 4-channel BTL audio amplifier controller IC with digital inputs and CMOS level PWM outputs. It enables high order digital control loops, with feedback after Class-D output filters. Embedded low-latency ADCs are used to close the loop behind the output filter in the digital domain. Th.

AX5689 Datasheet (1.50 MB)

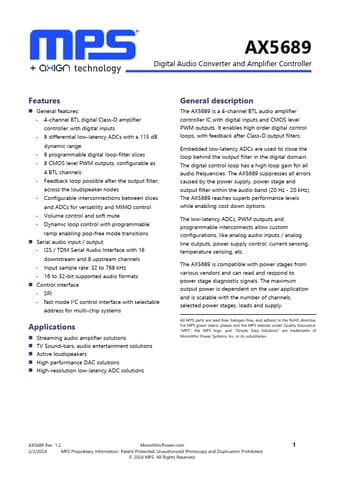

Preview of AX5689 PDF

Datasheet Details

Part number:

AX5689

Manufacturer:

MPS

File Size:

1.50 MB

Description:

Digital audio converter and amplifier controller.
