AX5688

Digital Audio Converter and Amplifier Controller

AX5688 Features

* General features: - 2-channel BTL digital Class-D amplifier controller with digital inputs - 4 differential low-latency ADCs with a 115 dB dynamic range - 4 programmable digital loop-filter slices - 4 CMOS level PWM outputs - Feedback loop possible after the output filter, across the loudspeak

AX5688 General Description

The AX5688 is a 2-channel BTL audio amplifier controller IC with digital inputs and CMOS level PWM outputs. It enables high order digital control loops, with feedback after Class-D output filters. Embedded low-latency ADCs are used to close the loop behind the output filter in the digital domain. Th.

AX5688 Datasheet (1.40 MB)

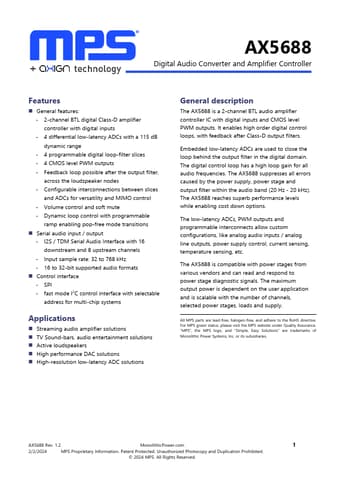

Preview of AX5688 PDF

Datasheet Details

Part number:

AX5688

Manufacturer:

MPS

File Size:

1.40 MB

Description:

Digital audio converter and amplifier controller.
