HR1000AGS

Resonant Half-Bridge Controller

HR1000AGS Features

* br>

* including latched shutdown, auto-recovery, brown-out protection, and overtemperature protection

* improve converter design safety without engendering additional circuit complexity. The IC provide 1.5A/2A source/sink capability for both high-side and low-side gate drivers. The HR1000A i

HR1000AGS General Description

The HR1000A is a controller designed specifically for the resonant half-bridge topology. It provides two drive-signal channels that output complementary signals at a 50% duty cycle. An internal fixed dead-time of 350ns between the two complementary gate signals guarantees zero-voltage switching duri.

HR1000AGS Datasheet (901.71 KB)

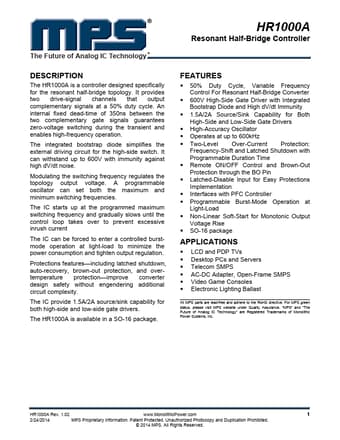

Preview of HR1000AGS PDF

Datasheet Details

Part number:

HR1000AGS

Manufacturer:

MPS

File Size:

901.71 KB

Description:

Resonant half-bridge controller.
