HR1000HS Resonant Half-Bridge Controller

The HR1000 is a controller designed specifically for the resonant half-bridge topology. It provides two drive-signal channels that output complementary signals at a 50% duty cycle. An internal fixed dead-time of 350ns between the two complementary gate signals guarantees zero-voltage switching durin.

HR1000HS Features

* br>

* including latched shutdown, auto-recovery, brown-out protection, and overtemperature protection

* improve converter design safety without engendering additional circuit complexity. The IC provide 1.5A/2A source/sink capability for both high-side and low-side gate drivers. The HR1000 is

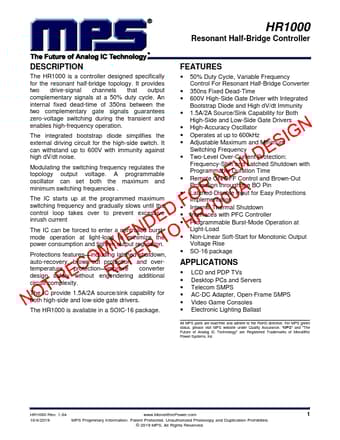

HR1000-MPS.pdf
