MP2009 Datasheet - MPS

120mA Linear Regulator

MP2009 Features

* Space-Saving SC70 Package

* 16µVRMS Output Noise (100Hz to 30kHz) No Bypass Capacitor Required

* 78dB PSRR at 1kHz

* 120mV Dropout at 120mA Load

* Stable with 1µF Ceramic Capacitor for Any Load

* Low 50µA Ground Current

* Very Fast Line and Load Transient Response with

MP2009 General Description

The MP2009 is an ultra low noise, low dropout linear regulator. The output voltage of MP2009 ranges from 1.5V to 4.5V in 100mV increments and 1% accuracy by operating from a +2.0V to +6.0V input. It is designed to deliver up to 120mA continuous output current. It achieves a low 120mV dropout for ful.

MP2009 Datasheet (440.66 KB)

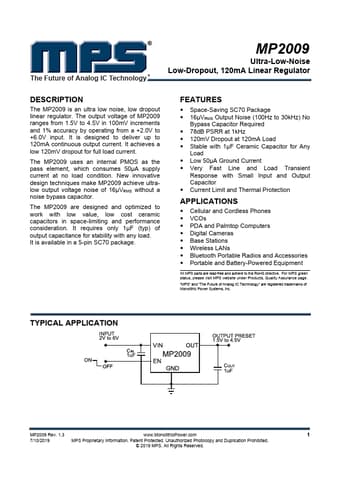

Preview of MP2009 PDF

Datasheet Details

Part number:

MP2009

Manufacturer:

MPS

File Size:

440.66 KB

Description:

120ma linear regulator.
