MP2136EG, MP2136 - Synchronous Step-Down Converter

MPS

📥 Download Datasheet

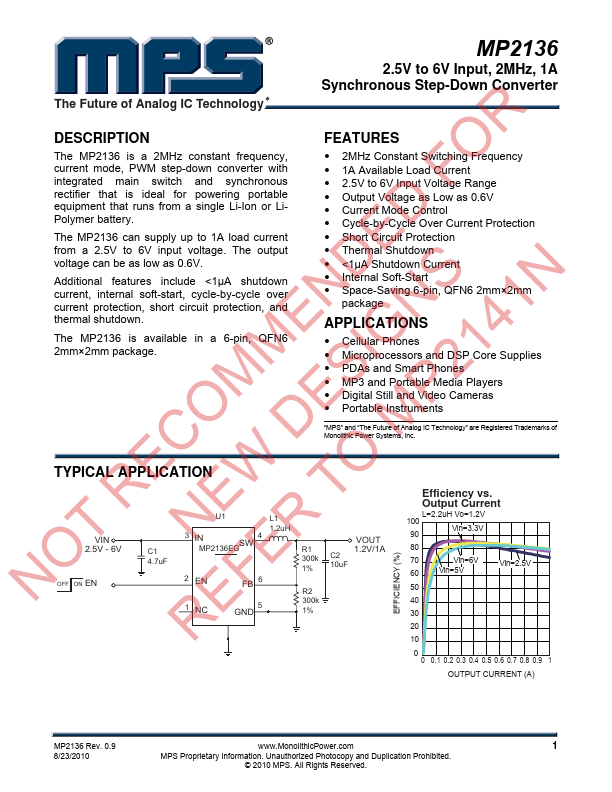

MP2136EG Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2136EG, MP2136. Please refer to the document for exact specifications by model.

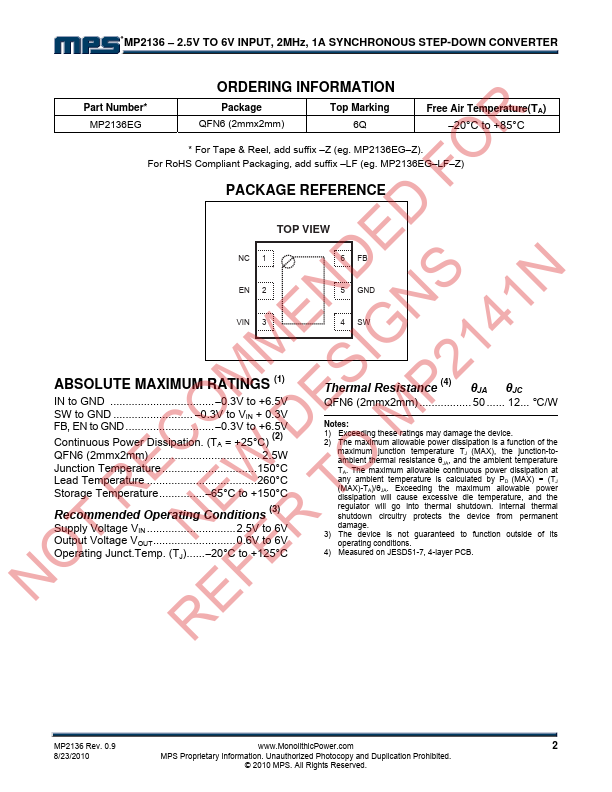

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP2136EG, MP2136
Manufacturer	MPS
File Size	1.27 MB
Description	Synchronous Step-Down Converter
Datasheet	MP2136-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2136EG, MP2136. Please refer to the document for exact specifications by model.

MP2136EG Product details

Description

The MP2136 is a 2MHz constant frequency, current mode, PWM step-down converter with integrated main switch and synchronous R

Features

2MHz Constant Switching Frequency O.
1A Available Load Current F.
2.5V to 6V Input Voltage Range rectifier that is ideal for powering portable equipment that runs from a single Li-Ion or Li- Polymer battery. D The MP2136 can supply up to 1A load current from a 2.5V to 6V input voltage. The output E voltage can be as low as 0.6V. D Additional features include.
