MP2131GG - Synchronous Step-Down Converter

Download the MP2131GG datasheet PDF. This datasheet also covers the MP2131 variant, as both devices belong to the same synchronous step-down converter family and are provided as variant models within a single manufacturer datasheet.

Description

The MP2131 is a monolithic step-down, switchmode converter with built-in internal power MOSFETs.

It achieves a 4 A continuous output current from a 2.7 V to 5.5 V input voltage with excellent load and line regulation.

Features

  • Wide 2.7 V to 5.5 V Operating Input Range.
  • Output Voltage as Low as 0.6 V.
  • 4 A Output Current.
  • 35 mΩ and 18 mΩ Internal Power MOSFET.
  • Above 96% Peak Efficiency.
  • Above 80% Light Load Efficiency.
  • Low IQ: 19 μA.
  • 1.2 MHz Frequency.
  • 100% Duty Cycle in Dropout.
  • 0.5 ms Internal Soft-Start Time.
  • EN and Power Good for Power Sequencing.
  • Auto Discharge at EN Off.
  • Short-Circuit Protection with Hiccup Mode.
  • Available in a QFN-12 (2mm x 2m.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MP2131-MPS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MP2103K3C10 Safety Standard Capacitor ETC
MP2104K3C30 Safety Standard Capacitor ETC
MP2104K3D20 Safety Standard Capacitor ETC
MP2105K3E60 Safety Standard Capacitor ETC
MP2105K3F20 Safety Standard Capacitor ETC

Other Datasheets by Monolithic Power Systems

Part Number Description
MP2131 Synchronous Step-Down Converter
MP2130 1.2MHz Synchronous Step-Down Converter
MP2130DG 1.2MHz Synchronous Step-Down Converter
MP2136 Synchronous Step-Down Converter
MP2136EG Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

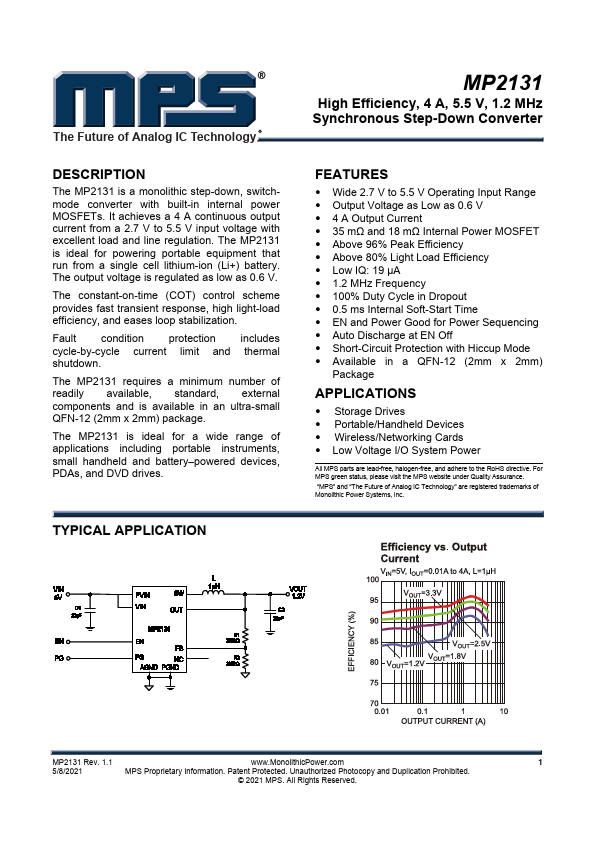

The Future of Analog IC Technology DESCRIPTION The MP2131 is a monolithic step-down, switchmode converter with built-in internal power MOSFETs. It achieves a 4 A continuous output current from a 2.7 V to 5.5 V input voltage with excellent load and line regulation. The MP2131 is ideal for powering portable equipment that run from a single cell lithium-ion (Li+) battery. The output voltage is regulated as low as 0.6 V. The constant-on-time (COT) control scheme provides fast transient response, high light-load efficiency, and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limit and thermal shutdown. The MP2131 requires a minimum number of readily available, standard, external components and is available in an ultra-small QFN-12 (2mm x 2mm) package.
