MP2212DN, MP2212 Datasheet - MPS

MP2212DN 600kHz Synchronous Step-Down Converter

The MP2212 is an internally compensated 600kHz fixed frequency PWM synchronous step-down regulator. With a 3V to 6V bias supply (VCC), MP2212 operates from a 3V to 16V input and generates an adjustable output voltage from 0.8V to 0.9xVIN at up to 3A load current. The MP2212 integrates an 80mΩ high-s.

MP2212DN Features

* include frequency synchronization input and internal soft-start. The MP2212 is available in small 3mm x 3mm 10-lead QFN and 8-lead SOIC with exposed pad packages. MP2212 16V, 3A, 600kHz Synchronous Step-Down Converter FEATURES

* 3A Output Current

* Input Supply Range: 3V to 16V

MP2212-MPS.pdf

This datasheet PDF includes multiple part numbers: MP2212DN, MP2212. Please refer to the document for exact specifications by model.

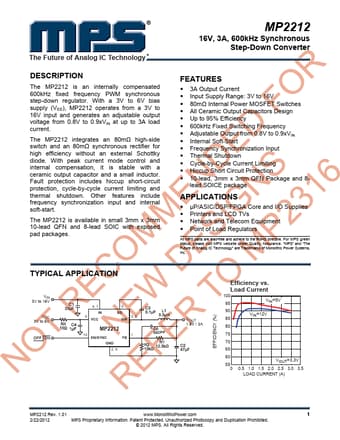

MP2212DN Datasheet Preview Page 2 MP2212DN Datasheet Preview Page 3

Datasheet Details

Part number:

MP2212DN, MP2212

Manufacturer:

MPS

File Size:

673.34 KB

Description:

600khz synchronous step-down converter.

Note:

This datasheet PDF includes multiple part numbers: MP2212DN, MP2212.
Please refer to the document for exact specifications by model.
