MP2214DL, MP2214 - 600kHz Synchronous Step-Down Converter

MP2214DL Description

The Future of Analog IC Technology .
The MP2214 is an internally compensated 600kHz fixed frequency PWM synchronous step-down regulator with a 3V to 6V bias supply (VCC).

MP2214DL Features

* include frequency synchronization and internal softstart. The MP2214 is available in small 3mm x 4mm 14-lead QFN and 8-lead SOIC with exposed pad packages. MP2214 16V, 4A, 600kHz Synchronous Step-Down Converter FEATURES
* 4A Output Current
* Input Supply Range: 3V to 16V
* 8

MP2214DL Applications

* µP/ASIC/DSP/FPGA Core and I/O Supplies
* Printers and LCD TVs
* Network and Telecom Equipment
* Point of Load Regulators “MPS” and “The Future of Analog IC Technology” are Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION VIN 3V to 16V VCC 3V to 6V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP2214DL, MP2214. Please refer to the document for exact specifications by model.

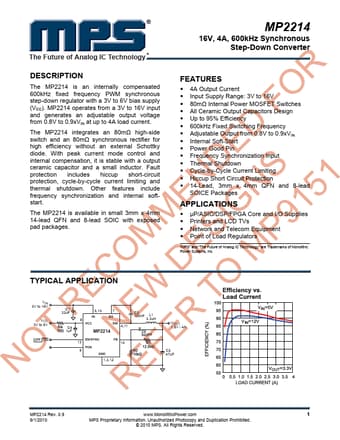

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP2214DL, MP2214
Manufacturer
MPS
File Size
383.12 KB
Datasheet
MP2214-MPS.pdf
Description
600kHz Synchronous Step-Down Converter
Note
This datasheet PDF includes multiple part numbers: MP2214DL, MP2214.
Please refer to the document for exact specifications by model.
