MP2326 Datasheet - MPS

High-Efficiency Constant-On-Time (COT) Step-Down Converter

MP2326 Features

* include SCP, OCP, UVP, and thermal shutdown. The MP2326 requires a minimal number of readily available, standard, external components with a space saving 2mmx3mm 14-pin QFN package. FEATURES

* 3.9V to 19V Operating Input Range

* 4A Output Current

* 40μA Quiescent Current

* Output Ad

MP2326 General Description

The MP2326 is a fully integrated, high-efficiency, synchronous, step-down, switch-mode converter with only a 40μA quiescent current. This very compact device achieves a 4A continuous output current over a wide input-supply range with excellent load and line regulation, and it operates with high effi.

MP2326 Datasheet (1.81 MB)

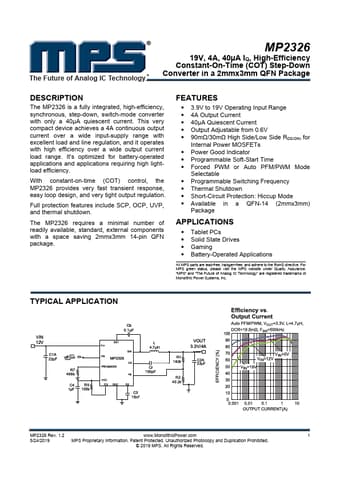

MP2326 Datasheet Preview — Preview of MP2326 PDF

Datasheet Details

Part number:

MP2326

Manufacturer:

MPS

File Size:

1.81 MB

Description:

High-efficiency constant-on-time (cot) step-down converter.
The Future of Analog IC Technology MP2326 19V, 4A, 40µA IQ, High-Efficiency Constant-On-Time (COT) Step-Down Converter in a 2mmx3mm QFN Package DESC.
