MP2330HGTL, MP2330H 24V 3A Synchronous Buck Converter

MP2330HGTL Description

MP2330H 24V, 3A, 1.2MHz, Synchronous Buck Converter .
The MP2330H is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

MP2330HGTL Features

* include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2330H requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package. FEATURES
* Wide 4.2V to 24V O

MP2330HGTL Applications

* Game Consoles
* Digital Set-Top Boxes
* Flat-Panel Television and Monitors
* General Purposes All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS”, the MPS logo, and “Simple, E

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP2330HGTL, MP2330H. Please refer to the document for exact specifications by model.

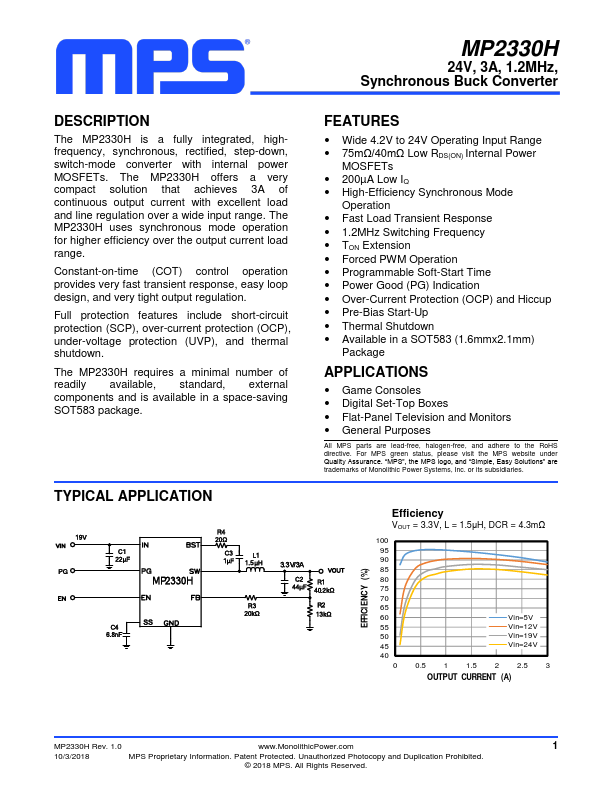

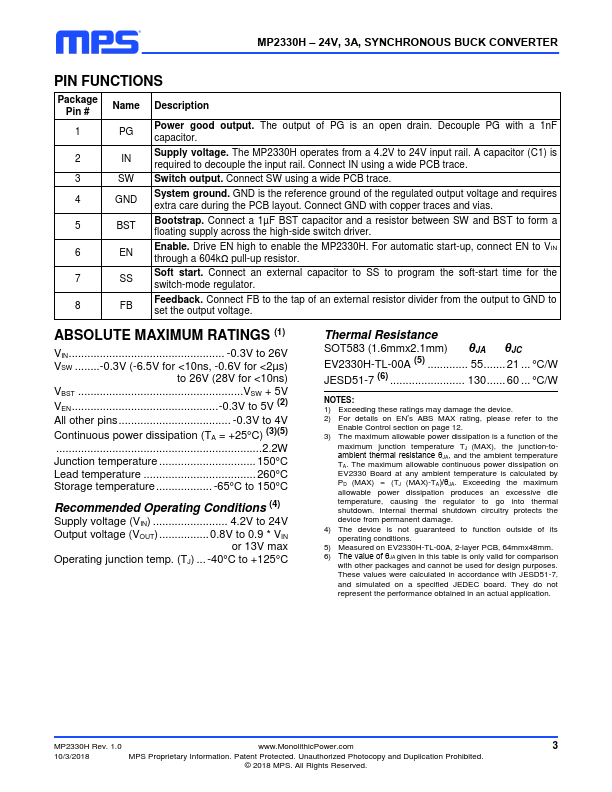

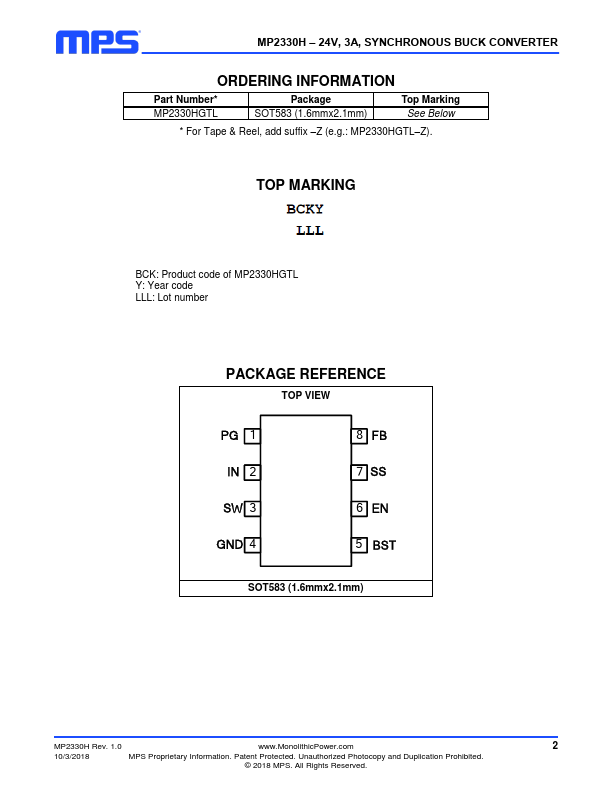

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP2330HGTL, MP2330H
Manufacturer
MPS
File Size
1.24 MB
Datasheet
MP2330H-MPS.pdf
Description
24V 3A Synchronous Buck Converter
Note
This datasheet PDF includes multiple part numbers: MP2330HGTL, MP2330H.
Please refer to the document for exact specifications by model.
