MP2331HGTL

24V 2A Synchronous Buck Converter

MP2331HGTL Features

* include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2331H requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package. FEATURES

* Wide 4.2V to 24V O

MP2331HGTL General Description

The MP2331H is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP2331H offers a very compact solution that achieves 2A of continuous output current with excellent load and line regulation over a wide input range. The MP2331.

MP2331HGTL Datasheet (1.25 MB)

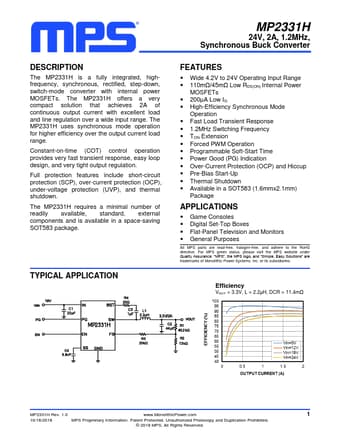

Preview of MP2331HGTL PDF

Datasheet Details

Part number:

MP2331HGTL

Manufacturer:

MPS

File Size:

1.25 MB

Description:

24v 2a synchronous buck converter.
