MP2359DJ - Step-Down Converter

This page provides the datasheet information for the MP2359DJ, a member of the MP2359 Step-Down Converter family.

Datasheet Summary

Description

O mode converter with a built-in power MOSFET.

line regulation.

D stabilization.

Features

  • 1.2A Peak Output Current.
  • 0.35Ω Internal Power MOSFET Switch.
  • Stable with Low ESR Output Ceramic Capacitors.
  • Up to 92% Efficiency.
  • 0.1μA Shutdown Mode.
  • Fixed 1.4MHz Frequency.
  • Thermal Shutdown.
  • Cycle-by-Cycle Over Current Protection.
  • Wide 4.5V to 24V Operating Input Range.
  • Output Adjustable from 0.81V to 15V.
  • Available in TSOT23-6 and SOT23-6 Packages.

📥 Download Datasheet

Datasheet preview – MP2359DJ

Datasheet Details

Part number MP2359DJ
Manufacturer MPS
File Size 632.57 KB
Description Step-Down Converter
Datasheet download datasheet MP2359DJ Datasheet

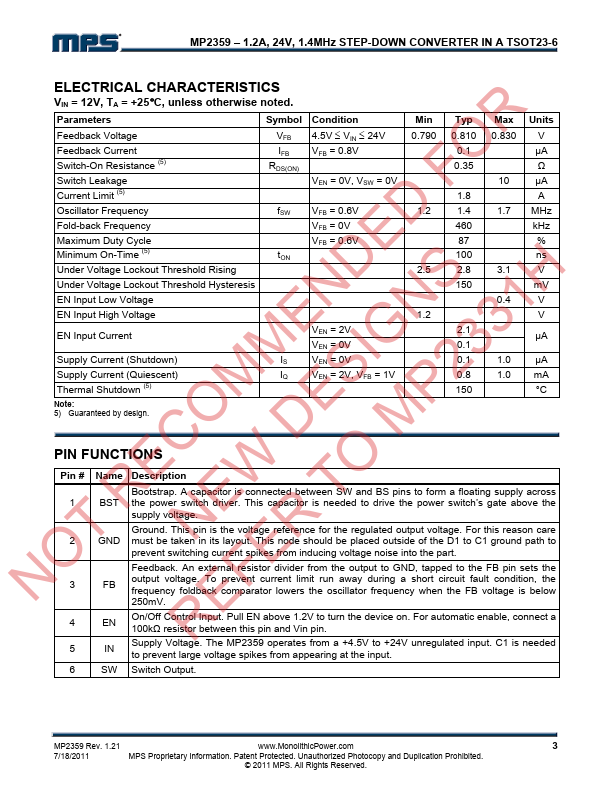

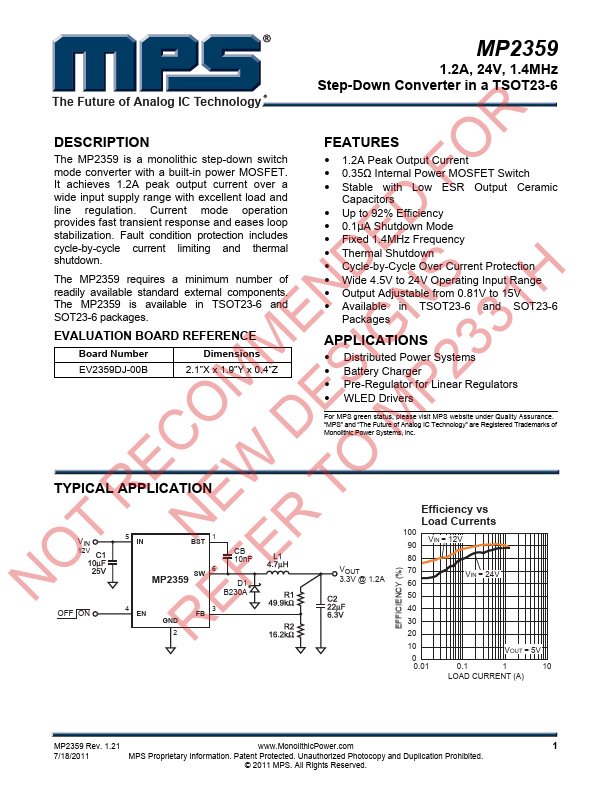

Additional preview pages of the MP2359DJ datasheet.

📁 Similar Datasheet

Other Datasheets by MPS
  • MP2359DT - Step-Down Converter
  • MP2359 - Step-Down Converter
  • MP2354 - Step-Down Converter
  • MP2355 - 3A 23V 380KHz Step-Down Converter
  • MP2357 - Step-Down Converter
  • MP2357DJ - Step-Down Converter
  • MP2357DT - Step-Down Converter
  • MP2303 - 340KHz Synchronous Rectified Step-Down Converter

Full PDF Text Transcription

Click to expand full text
MP2359 1.2A, 24V, 1.4MHz Step-Down Converter in a TSOT23-6 The Future of Analog IC Technology R DESCRIPTION The MP2359 is a monolithic step-down switch O mode converter with a built-in power MOSFET. It achieves 1.2A peak output current over a F wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop D stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal E shutdown. The MP2359 requires a minimum number of D S readily available standard external components. H The MP2359 is available in TSOT23-6 and EN N 1 SOT23-6 packages. M IG 3 EVALUATION BOARD REFERENCE Board Number OM ES P23 EV2359DJ-00B Dimensions 2.1”X x 1.9”Y x 0.4”Z FEATURES • 1.2A Peak Output Current • 0.
