MP2403 - 250kHz Integrated Synchronous Step-Down Converter

MP2403 Description

The Future of Analog IC Technology MP2403 3A, 32V, 250kHz Integrated Synchronous Step-Down Converter .
The MP2403 is a monolithic synchronous buck regulator.

MP2403 Features

* 3A Output Current
* Wide 4.6V to 32V Operating Input Range
* Integrated MOSFET Switches
* Output Adjustable from 0.80V to 28V
* Up to 95% Efficiency
* Programmable Soft-Start
* Stable with Low ESR Ceramic Output Capacitors
* Fixed 250kHz Frequency
* Cycle-by-Cyc

MP2403 Applications

* Distributed Power Systems
* Pre-Regulator for Linear Regulators
* Notebook Computers “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION INPUT 4.6V to 32V OFF 2 ON 7 IN EN 1 BS SW 3 MP2403 8 SS FB 5

📥 Download Datasheet

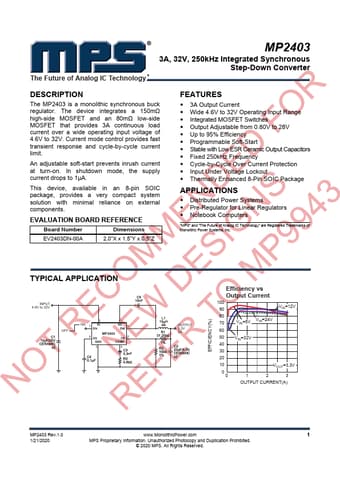

Preview of MP2403 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP2403
Manufacturer
MPS
File Size
541.80 KB
Datasheet
MP2403-MPS.pdf
Description
250kHz Integrated Synchronous Step-Down Converter
