The MP2626GR by MPS is a USB-Compliant Single Cell Li-ion Switching Charger. Below is the official datasheet preview.

📥 Download Datasheet

MP2626GR USB-Compliant Single Cell Li-ion Switching Charger by MPS - Datasheet Preview — Official preview page of the **MP2626GR** USB-Compliant Single Cell Li-ion Switching Charger datasheet (MPS).

Datasheet Details

Part number	MP2626GR, MP2626
Manufacturer	MPS
File Size	1.01 MB
Description	USB-Compliant Single Cell Li-ion Switching Charger
Datasheet	MP2626-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2626GR, MP2626. Please refer to the document for exact specifications by model.

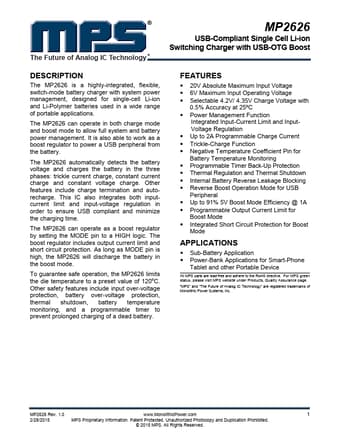

Additional preview pages of the MP2626GR datasheet.

MP2626GR Product details

Description

The MP2626 is a highly-integrated, flexible, switch-mode battery charger with system power management, designed for single-cell Li-ion and Li-Polymer batteries used in a wide range of portable applications.

Features

include charge termination and autorecharge. This IC also integrates both inputcurrent limit and input-voltage regulation in order to ensure USB compliant and minimize the charging time. The MP2626 can operate as a boost regulator by setting the MODE pin to a HIGH logic. The boost regulator includes output current limit and short circuit protection. As long as MODE pin is high, the MP2626 will discharge the battery in the boost mode. To guarantee safe operation, the MP2626 limits the die tempera.
