MP2720A

Buck Charger

MP2720A Features

* 2.2A Switching Charger with NarrowVoltage DC (NVDC) Power Path Management

* Supports USB BC1.2 and Non-Standard Adapters

* 26V Sustainable Input Voltage (VIN)

* Configurable 40mA to 2.2A Charge Current (ICC) via I2C

* Configurable 100mA to 3.2A Input Current

MP2720A General Description

The MP2720A is a highly integrated, 2.2A switch-mode battery management device for single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power management structure provides a low impedance power path that charging efficiency, reduces battery charging time, and extends battery life.

MP2720A Datasheet (1.11 MB)

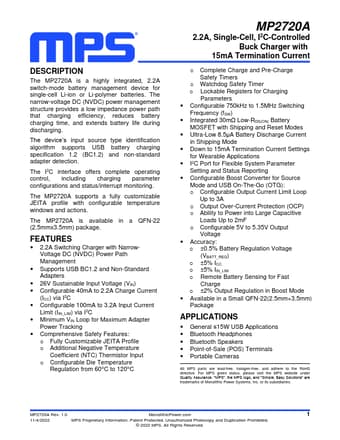

Preview of MP2720A PDF

Datasheet Details

Part number:

MP2720A

Manufacturer:

MPS

File Size:

1.11 MB

Description:

Buck charger.
