MP2720AGRH, MP2720A - Buck Charger

MPS

📥 Download Datasheet

MP2720AGRH Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2720AGRH, MP2720A. Please refer to the document for exact specifications by model.

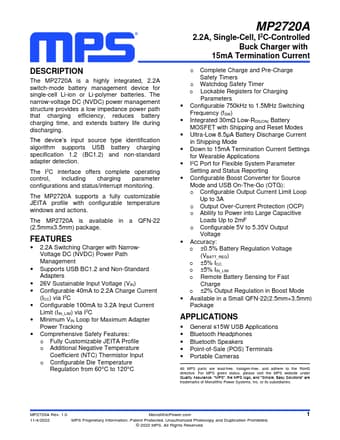

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP2720AGRH, MP2720A
Manufacturer	MPS
File Size	1.11 MB
Description	Buck Charger
Datasheet	MP2720A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2720AGRH, MP2720A. Please refer to the document for exact specifications by model.

MP2720AGRH Product details

Description

The MP2720A is a highly integrated, 2.2A switch-mode battery management device for single-cell Li-ion or Li-polymer batteries.

Features

2.2A Switching Charger with NarrowVoltage DC (NVDC) Power Path Management.
Supports USB BC1.2 and Non-Standard Adapters.
26V Sustainable Input Voltage (VIN).
Configurable 40mA to 2.2A Charge Current (ICC) via I2C.
Configurable 100mA to 3.2A Input Current Limit (IIN_LIM) via I2C.
Minimum VIN Loop for Maximum Adapter Power Tracking.
Comprehensive Safety Features: o Fully Customizable JEITA Profile o Additional Negative Temperature Coe.
