MP2886A - Multi-Phase PWM Controller

MP2886A Description

.
The MP2886A is a digital, multi-phase, pulsewidth modulation (PWM) controller with a digital PWM-VID interface that is compatible with NVIDIA’s Open V.

MP2886A Features

* Programmable Multi-Phase up to 6 Phases
* PWM-VID Interface Compatible with NVIDIA
* PMBus/I2C Compliant (1MHz Bus Speed)
* Pin Programmable for PMBus Address
* Built-In EEPROM to Store Custom Configurations
* Switching Frequency Range 200kHz to 5MHz
* Automatic Loop Co

MP2886A Applications

* Graphic Card Core Power
* Server Core Power
* Telecom and Networking Systems
* Base Stations All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC T

📥 Download Datasheet

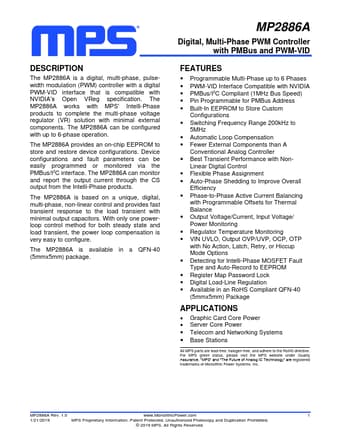

Preview of MP2886A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP2886A
Manufacturer
MPS
File Size
2.82 MB
Datasheet
MP2886A-MPS.pdf
Description
Multi-Phase PWM Controller
