MP2888A

Multi-Phase PWM Controller

MP2888A Features

* Programmable Multi-Phase up to 10 Phases

* PWM-VID Interface Compatible with NVIDIA Open VReg Specification

* PMBus/I2C Compliant (1MHz Bus Speed)

* Pin Programmable for PMBus Address

* Built-In EEPROM to Store Custom Configurations

* Switching Frequency Range 200kHz to 5MH

MP2888A General Description

The MP2888A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification. The MP2888A can work with MPS’s Intelli-Phase products to complete the multi-phase voltage regulator (VR) solution with minimal external comp.

MP2888A Datasheet (4.09 MB)

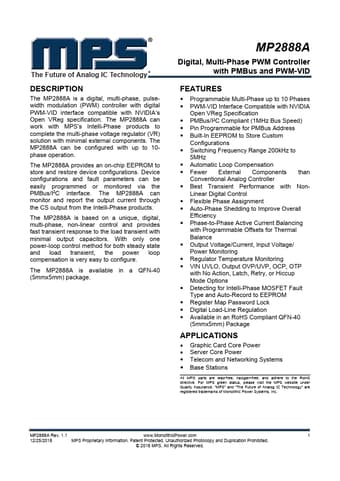

Preview of MP2888A PDF

Datasheet Details

Part number:

MP2888A

Manufacturer:

MPS

File Size:

4.09 MB

Description:

Multi-phase pwm controller.
