MP3301GJ, MP3301 - Fixed-Frequency Step-Up Driver

MP3301GJ Description

MP3301 1.3MHz, 700mA, Fixed-Frequency Step-Up Driver for up to 10 White LEDS .
The MP3301 is a step-up converter designed to drive WLEDS arrays from a single-cell, lithium-ion battery.

MP3301GJ Features

* Internal Power MOSFET
* Drives up to 10 White LEDs in Series
* Up to 89% Efficiency
* PWM and Analog Dimming
* 1.3MHz Fixed Switching Frequency
* Low 200mV Feedback Voltage
* Internal 700mA Current Limit
* Open-Load Shutdown
* UVLO, Thermal Shutdown
* Availa

MP3301GJ Applications

* Smart Phones
* Digital Still Cameras
* Small LCDs All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “Monolithic Power Systems”, “MPS”, and “The Future of Analog IC Technology” are Registered Trademarks

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP3301GJ, MP3301. Please refer to the document for exact specifications by model.

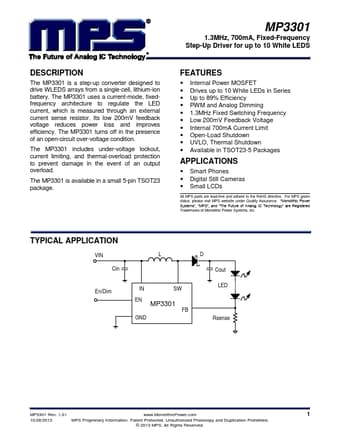

datasheet Preview Page 2 datasheet Preview Page 3
