MP3308 Step-up White LED Driver

MP3308 Description

The Future of Analog IC Technology MP3308 Step-up White LED Driver with Dual PWM Dimming Input Control .
The MP3308 is a monolithic step-up converter designed to drive arrays of white LEDs from a 3.

MP3308 Features

* dual PWM-dimming input control and true PWM dimming
* this control allows for a wide luminescent range that makes the display readable under a variety of ambient light conditions with minimal PWM dimming noise. The MP3308 includes over-voltage protection, short-circuit protection, under-voltag

MP3308 Applications

* Small LCD Panels
* Digital Picture Frames
* Smartphones
* Portable Media Players
* Digital Cameras All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and

📥 Download Datasheet

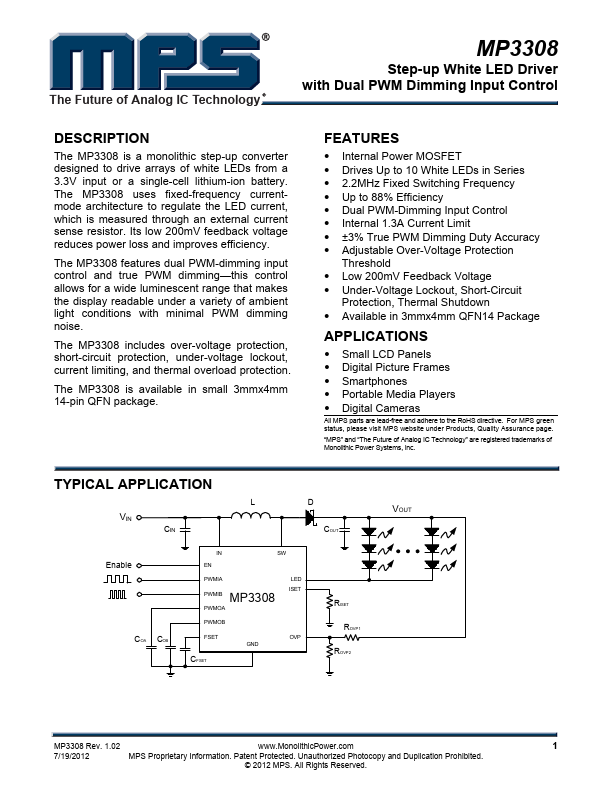

Preview of MP3308 PDF

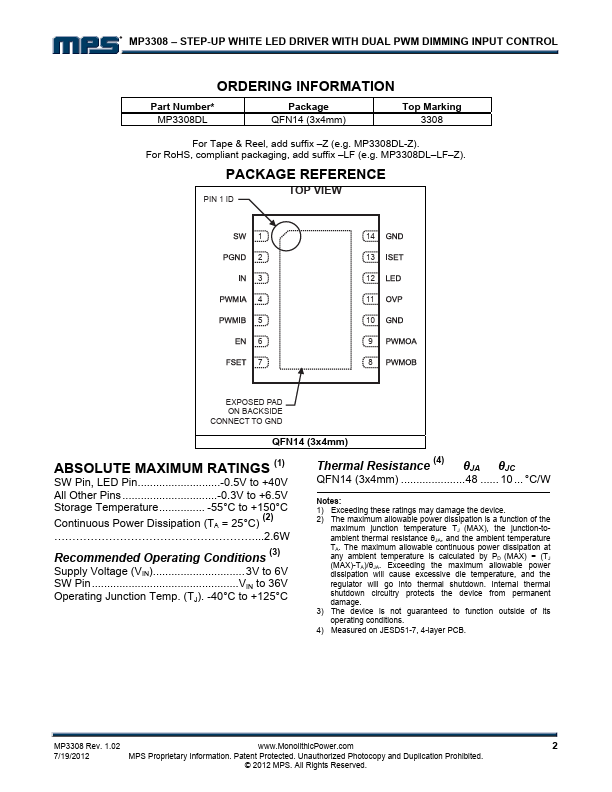

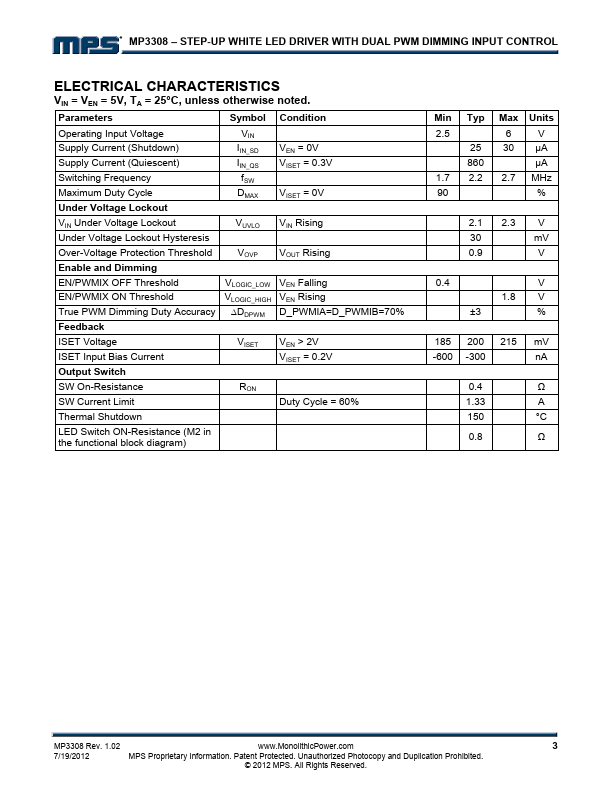

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP3308
Manufacturer
MPS
File Size
300.77 KB
Datasheet
MP3308-MPS.pdf
Description
Step-up White LED Driver
