MP3383 - Step-Up WLED Controller

MPS

📥 Download Datasheet

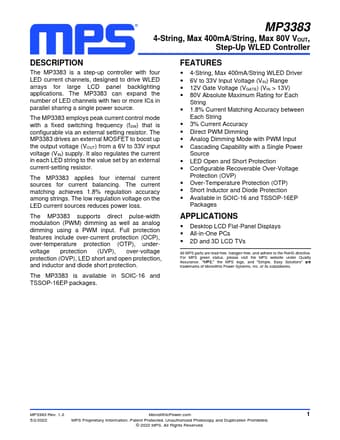

MP3383 Datasheet Preview — Preview of MP3383 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3383
Manufacturer	MPS
File Size	966.33 KB
Description	Step-Up WLED Controller
Datasheet	MP3383-MPS.pdf

MP3383 Product details

Description

The MP3383 is a step-up controller with four LED current channels, designed to drive WLED arrays for large LCD panel backlighting applications.

Features

include over-current protection (OCP), over-temperature protection (OTP), undervoltage protection (UVP), over-voltage protection (OVP), LED short and open protection, and inductor and diode short protection. The MP3383 is available in SOIC-16 and TSSOP-16EP packages.
