MP3383GF, MP3383, Step-Up WLED Controller

MP3383 4-String, Max 400mA/String, Max 80V VOUT, Step-Up WLED Controller .
The MP3383 is a step-up controller with four LED current channels, designed to drive WLED arrays for large LCD panel backlighting applications.

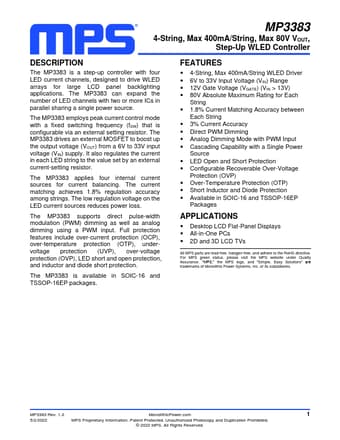

datasheet Preview Page 1 from Datasheet4u.com

MP3383-MPS.pdf

MP3383GF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP3383GF, MP3383. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP3383GF, MP3383

Manufacturer:

MPS

File Size:

966.33 KB

Description:

Step-Up WLED Controller

Note:

This datasheet PDF includes multiple part numbers: MP3383GF, MP3383.
Please refer to the document for exact specifications by model.

Features

* include over-current protection (OCP), over-temperature protection (OTP), undervoltage protection (UVP), over-voltage protection (OVP), LED short and open protection, and inductor and diode short protection. The MP3383 is available in SOIC-16 and TSSOP-16EP packages. FEATURES
* 4-String, Ma

Applications

* The MP3383 can expand the number of LED channels with two or more ICs in parallel sharing a single power source. The MP3383 employs peak current control mode with a fixed switching frequency (fSW) that is configurable via an external setting resistor. The MP3383 drives an external MOSFET to boost u
