MP3394SGF, MP3394S - Max 200mA/String White LED Driver

MPS

📥 Download Datasheet

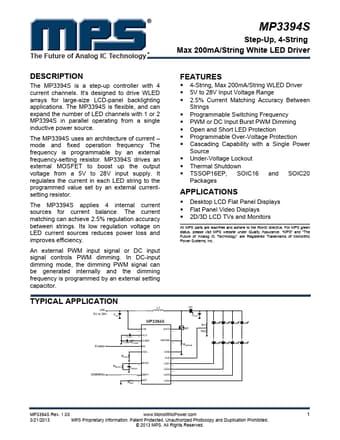

MP3394SGF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP3394SGF, MP3394S. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3394SGF, MP3394S
Manufacturer	MPS
File Size	412.65 KB
Description	Max 200mA/String White LED Driver
Datasheet	MP3394S-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP3394SGF, MP3394S. Please refer to the document for exact specifications by model.

MP3394SGF Product details

Description

The MP3394S is a step-up controller with 4 current channels. mode and fixed operation frequency The frequency is programmable by an external frequency-setting resistor.

Features

4-String, Max 200mA/String WLED Driver.
5V to 28V Input Voltage Range.
2.5% Current Matching Accuracy Between Strings.
Programmable Switching Frequency.
PWM or DC Input Burst PWM Dimming.
Open and Short LED Protection.
Programmable Over-Voltage Protection.
Cascading Capability with a Single Power Source.
Under-Voltage Lockout.
Thermal Shutdown.
TSSOP16EP, SOIC16 and SOIC20 Packages.
