MP3394 - Max 200mA/String White LED Driver

MPS

📥 Download Datasheet

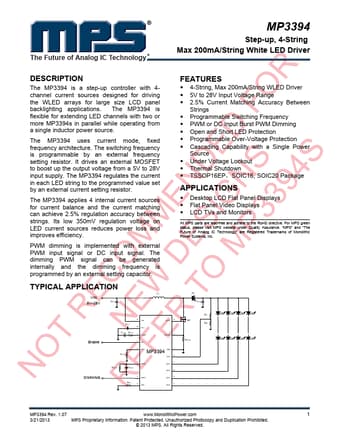

MP3394 Datasheet Preview — Preview of MP3394 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3394
Manufacturer	MPS
File Size	467.50 KB
Description	Max 200mA/String White LED Driver
Datasheet	MP3394-MPS.pdf

MP3394 Product details

Description

The MP3394 is a step-up controller with 4channel current sources designed for driving the WLED arrays for large size LCD panel backlighting applications.

Features

4-String, Max 200mA/String WLED Driver.
5V to 28V Input Voltage Range.
2.5% Current Matching Accuracy Between Strings.
Programmable Switching Frequency.
PWM or DC Input Burst PWM Dimming.
Open and Short LED Protection.
Programmable Over-Voltage Protection.
Cascading Capability with a Single Power Source.
Under Voltage Lockout.
Thermal Shutdown.
TSSOP16EP，SOIC16, SOIC20 Package.
