MP3394EY, MP3394 - Max 200mA/String White LED Driver

MPS

📥 Download Datasheet

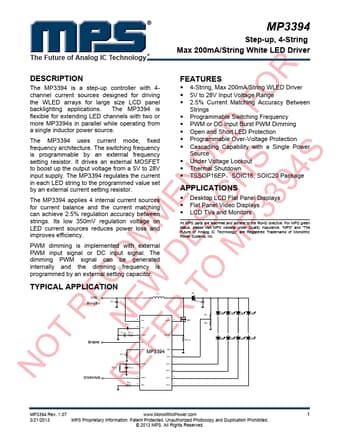

MP3394EY Datasheet Preview — This datasheet PDF includes multiple part numbers: MP3394EY, MP3394. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3394EY, MP3394
Manufacturer	MPS
File Size	467.50 KB
Description	Max 200mA/String White LED Driver
Datasheet	MP3394-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP3394EY, MP3394. Please refer to the document for exact specifications by model.

MP3394EY Product details

Description

The MP3394 is a step-up controller with 4channel current sources designed for driving the WLED arrays for large size LCD panel backlighting applications.

Features

4-String, Max 200mA/String WLED Driver.
5V to 28V Input Voltage Range.
2.5% Current Matching Accuracy Between Strings.
Programmable Switching Frequency.
PWM or DC Input Burst PWM Dimming.
Open and Short LED Protection.
Programmable Over-Voltage Protection.
Cascading Capability with a Single Power Source.
Under Voltage Lockout.
Thermal Shutdown.
TSSOP16EP，SOIC16, SOIC20 Package.
