MP4423HGQ, MP4423H Datasheet - MPS

MP4423HGQ Synchronous Step Down Converter

The MP4423H is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MP4423H has synchronous mode .

MP4423HGQ Features

* include over-current protection and thermal shut down. The MP4423H requires a minimal number of readily-available standard external components, and is available in a space-saving QFN-8 (3mmx3mm) package. TYPICAL APPLICATION MP4423H High Efficiency 3A, 36V, Synchronous Step Down Converter FEATURES

MP4423H-MPS.pdf

This datasheet PDF includes multiple part numbers: MP4423HGQ, MP4423H. Please refer to the document for exact specifications by model.

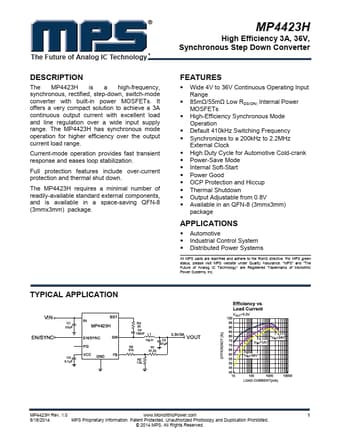

MP4423HGQ Datasheet Preview Page 2 MP4423HGQ Datasheet Preview Page 3

Datasheet Details

Part number:

MP4423HGQ, MP4423H

Manufacturer:

MPS

File Size:

645.17 KB

Description:

Synchronous step down converter.

Note:

This datasheet PDF includes multiple part numbers: MP4423HGQ, MP4423H.
Please refer to the document for exact specifications by model.
