MP4425AGQB, MP4425A Datasheet - MPS

MP4425AGQB Step-Down LED Driver

The MP4425A is a high-frequency, synchronous, rectified, step-down, switch-mode white LED driver with built-in power MOSFETs. It offers a very compact solution to achieve 1.5A of continuous output current with excellent load and line regulation over a wide input supply range. The MP4425A has synchro.

MP4425AGQB Features

* include over-current protection (OCP) and thermal shutdown (TSD). The MP4425A requires a minimal number of readily available, standard external components, and is available in a space-saving QFN-13 (2.5mmx3mm) package. FEATURES

* Wide 4V to 36V Operating Input Range

* 85mΩ/50mΩ Low RDS(ON)

MP4425A-MPS.pdf

This datasheet PDF includes multiple part numbers: MP4425AGQB, MP4425A. Please refer to the document for exact specifications by model.

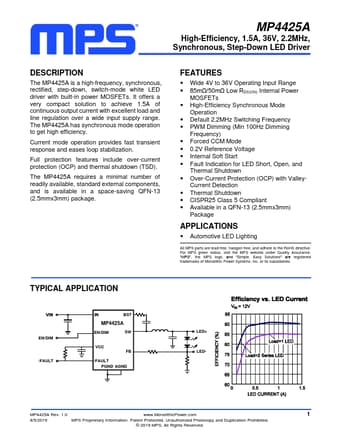

MP4425AGQB Datasheet Preview Page 2 MP4425AGQB Datasheet Preview Page 3

Datasheet Details

Part number:

MP4425AGQB, MP4425A

Manufacturer:

MPS

File Size:

1.66 MB

Description:

Step-down led driver.

Note:

This datasheet PDF includes multiple part numbers: MP4425AGQB, MP4425A.
Please refer to the document for exact specifications by model.
