MP5073GG, MP5073 - 5.5V 2A Low RDSON Load Switch

MPS

📥 Download Datasheet

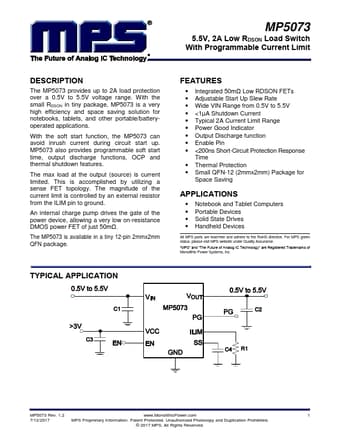

MP5073GG Datasheet Preview — This datasheet PDF includes multiple part numbers: MP5073GG, MP5073. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP5073GG, MP5073
Manufacturer	MPS
File Size	966.04 KB
Description	5.5V 2A Low RDSON Load Switch
Datasheet	MP5073-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP5073GG, MP5073. Please refer to the document for exact specifications by model.

MP5073GG Product details

Description

The MP5073 provides up to 2A load protection over a 0.5V to 5.5V voltage range.

Features

The max load at the output (source) is current limited. This is accomplished by utilizing a sense FET topology. The magnitude of the current limit is controlled by an external resistor from the ILIM pin to ground. An internal charge pump drives the gate of the power device, allowing a very low on-resistance DMOS power FET of just 50mΩ. The MP5073 is available in a tiny 12-pin 2mmx2mm QFN package.
