MP5075LGTF

Load Switch

MPS

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Monolithic Power Systems	MP5075LGTF-Z	IC PWR SWITCH P-CHAN 1:1 SOT563	DigiKey	2240	2500 units	$0.2	🛒 Buy Now

MP5075LGTF Datasheet (719.76 KB)

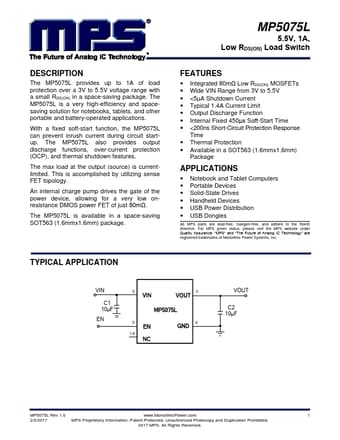

MP5075LGTF Datasheet Preview — Preview of MP5075LGTF PDF Datasheet

Datasheet Details

Part number:

MP5075LGTF

Manufacturer:

MPS

File Size:

719.76 KB

Description:

Load switch

MP5075LGTF Features

* The max load at the output (source) is currentlimited. This is accomplished by utilizing sense FET topology. An internal charge pump drives the gate of the power device, allowing for a very low onresistance DMOS power FET of just 80mΩ. The MP5075L is available in a space-saving SOT563 (1.6mmx1.6mm)

MP5075LGTF General Description

The MP5075L provides up to 1A of load protection over a 3V to 5.5V voltage range with a small RDS(ON) in a space-saving package. The MP5075L is a very high-efficiency and spacesaving solution for notebooks, tablets, and other portable and battery-operated applications. With a fixed soft-start functi.
