MP6922DN, MP6922 Dual Fast Turn-off Intelligent Controller

MP6922DN Description

MP6922 Dual Fast Turn-off Intelligent Controller The Future of Analog IC Technology .
The MP6922 is a dual fast turn-off intelligent controller to drive two N-CH power MOSFETs in LLC resonant converters for synchronous rectification.

MP6922DN Features

* Works with both Standard and Logic Level FETs
* Compatible with Energy Star, 0.5W Standby Requirements
* VDD Range From 8V to 24V
* 70m VDS Regulation Function (1)
* Fast Turn-off Total Delay of 20ns
* Reverse Current Protection Function
* Max 300kHz Switching Frequency

MP6922DN Applications

* AC-DC Adapter
* LCD & PDP TV
* Telecom SMPS All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP6922DN, MP6922. Please refer to the document for exact specifications by model.

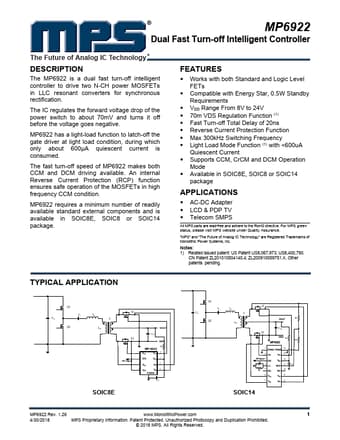

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP6922DN, MP6922
Manufacturer
MPS
File Size
356.64 KB
Datasheet
MP6922-MPS.pdf
Description
Dual Fast Turn-off Intelligent Controller
Note
This datasheet PDF includes multiple part numbers: MP6922DN, MP6922.
Please refer to the document for exact specifications by model.
