MP6922DS, MP6922 Datasheet - MPS

MP6922DS Dual Fast Turn-off Intelligent Controller

The MP6922 is a dual fast turn-off intelligent controller to drive two N-CH power MOSFETs in LLC resonant converters for synchronous rectification. The IC regulates the forward voltage drop of the power switch to about 70mV and turns it off before the voltage goes negative. MP6922 has a light-load f.

MP6922DS Features

* Works with both Standard and Logic Level FETs

* Compatible with Energy Star, 0.5W Standby Requirements

* VDD Range From 8V to 24V

* 70m VDS Regulation Function (1)

* Fast Turn-off Total Delay of 20ns

* Reverse Current Protection Function

* Max 300kHz Switching Frequency

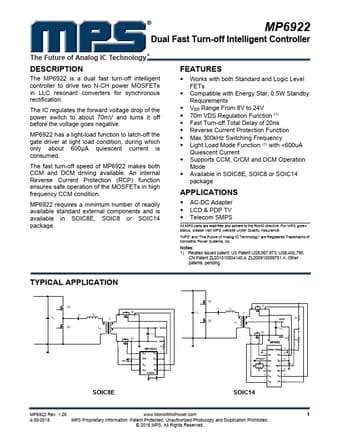

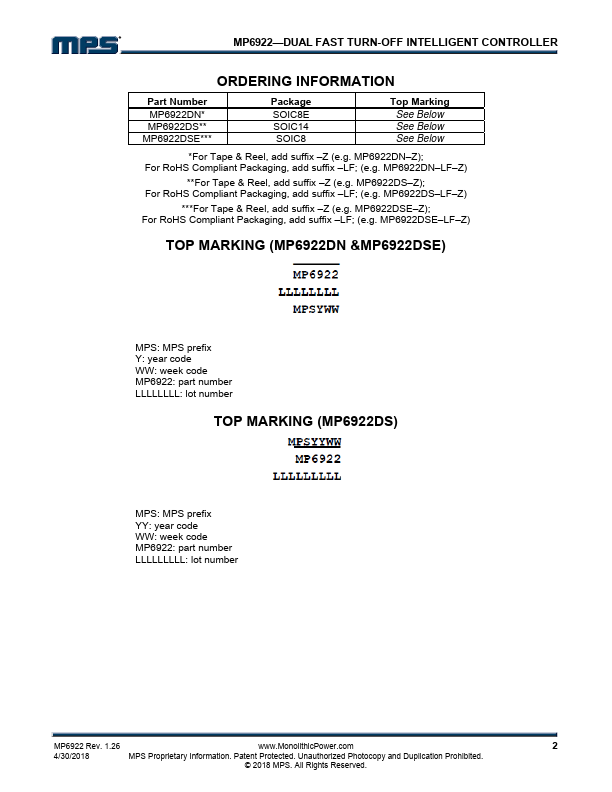

MP6922-MPS.pdf

MP6922DS Datasheet Preview — This datasheet PDF includes multiple part numbers: MP6922DS, MP6922. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP6922DS, MP6922

Manufacturer:

MPS

File Size:

356.64 KB

Description:

Dual fast turn-off intelligent controller.

Note:

This datasheet PDF includes multiple part numbers: MP6922DS, MP6922.
Please refer to the document for exact specifications by model.
