Description

MP6924, MP6924A Fast Turn-off, CCM/DCM Compatible Dual LLC Synchronous Rectifier with low Sleep Mode Current .
The MP6924, MP6924A is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters.

📥 Download Datasheet

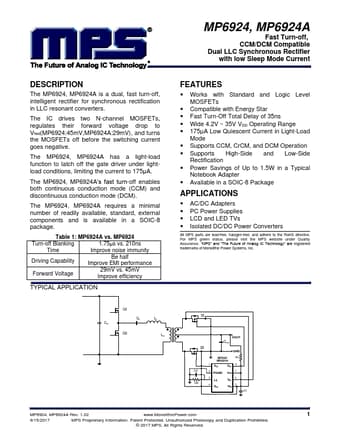

MP6924AGS Datasheet Preview — This datasheet PDF includes multiple part numbers: MP6924AGS, MP6924. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MP6924AGS, MP6924
Manufacturer: MPS
File Size: 714.88 KB
Datasheet: MP6924-MPS.pdf
Description: Dual LLC Synchronous Rectifier
Note: This datasheet PDF includes multiple part numbers: MP6924AGS, MP6924.
Please refer to the document for exact specifications by model.

Features

* Works with Standard and Logic Level MOSFETs
* Compatible with Energy Star
* Fast Turn-Off Total Delay of 35ns
* Wide 4.2V ~ 35V VDD Operating Range
* 175µA Low Quiescent Current in Light-Load Mode
* Supports CCM, CrCM, and DCM Operation
* Sup

Applications

* AC/DC Adapters
* PC Power Supplies
* LCD and LED TVs
* Isolated DC/DC Power Converters All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of A
