MP6924A, MP6924 Datasheet - MPS

MP6924A Dual LLC Synchronous Rectifier

The MP6924, MP6924A is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters. The IC drives two N-channel MOSFETs, regulates their forward voltage drop to Vfwd(MP6924:45mV,MP6924A:29mV), and turns the MOSFETs off before the switching current goes nega.

MP6924A Features

* Works with Standard and Logic Level MOSFETs

* Compatible with Energy Star

* Fast Turn-Off Total Delay of 35ns

* Wide 4.2V ~ 35V VDD Operating Range

* 175µA Low Quiescent Current in Light-Load Mode

* Supports CCM, CrCM, and DCM Operation

* Sup

MP6924-MPS.pdf

This datasheet PDF includes multiple part numbers: MP6924A, MP6924. Please refer to the document for exact specifications by model.

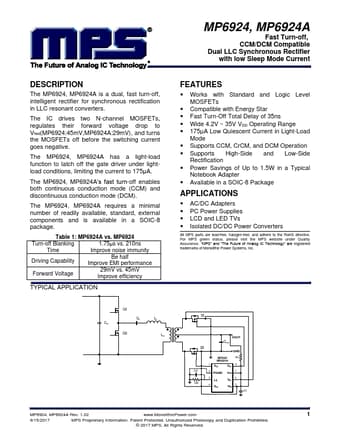

MP6924A Datasheet Preview Page 2 MP6924A Datasheet Preview Page 3
