MP6924GS, MP6924 Dual LLC Synchronous Rectifier

MP6924GS Description

MP6924, MP6924A Fast Turn-off, CCM/DCM Compatible Dual LLC Synchronous Rectifier with low Sleep Mode Current .
The MP6924, MP6924A is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters.

MP6924GS Features

* Works with Standard and Logic Level MOSFETs
* Compatible with Energy Star
* Fast Turn-Off Total Delay of 35ns
* Wide 4.2V ~ 35V VDD Operating Range
* 175µA Low Quiescent Current in Light-Load Mode
* Supports CCM, CrCM, and DCM Operation
* Sup

MP6924GS Applications

* AC/DC Adapters
* PC Power Supplies
* LCD and LED TVs
* Isolated DC/DC Power Converters All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP6924GS, MP6924. Please refer to the document for exact specifications by model.

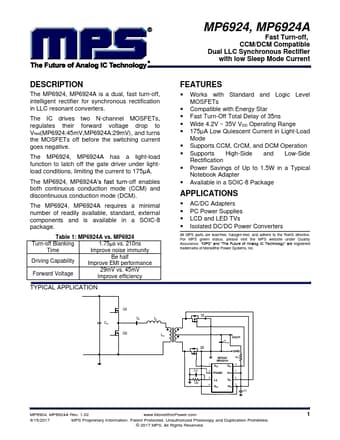

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP6924GS, MP6924
Manufacturer
MPS
File Size
714.88 KB
Datasheet
MP6924-MPS.pdf
Description
Dual LLC Synchronous Rectifier
Note
This datasheet PDF includes multiple part numbers: MP6924GS, MP6924.
Please refer to the document for exact specifications by model.
