MP8128 - LNB Voltage Regulator

General Description

The MP8128 is a highly integrated voltage regulator designed to provide efficient, lownoise power and interface signals to a satellite receiver’s low noise block downconverter (LNB) at the antenna port.

The device provides a 22kHz tone signal and a standard I2C interface for satellite receivers.

Key Features

  • including voltage selection, over-current protection (OCP), and 22kHz tone signal control. The MP8128 offers a simple solution with a low component count and high efficiency. The MP8128 is available in QFN-20 (3mmx3mm) package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP8126 Cooling Fan Motor Gate
MP810 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
MP810G GLASS PASSIVATED BRIDGE RECTIFIERS HY ELECTRONIC
MP816 Kool-Pak Power Film Resistors Caddock Electronics
MP8 AC-DC / Configurable Emerson

Other Datasheets by Monolithic Power Systems

Part Number Description
MP8101 400kHz Op Amp
MP8130 Ultra Low Power High Voltage Op Amp
MP8130DJ Ultra Low Power High Voltage Op Amp
MP8007 Fully-Integrated 802.3af-Compatible PoE PD Interface
MP8007GV Fully-Integrated 802.3af-Compatible PoE PD Interface

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

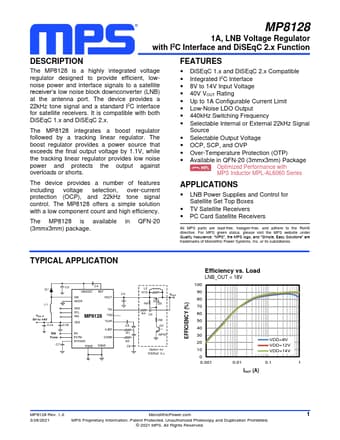

MP8128 1A, LNB Voltage Regulator with I2C Interface and DiSEqC 2.x Function DESCRIPTION The MP8128 is a highly integrated voltage regulator designed to provide efficient, lownoise power and interface signals to a satellite receiver’s low noise block downconverter (LNB) at the antenna port. The device provides a 22kHz tone signal and a standard I2C interface for satellite receivers. It is compatible with both DiSEqC 1.x and DiSEqC 2.x. The MP8128 integrates a boost regulator followed by a tracking linear regulator. The boost regulator provides a power source that exceeds the final output voltage by 1.1V, while the tracking linear regulator provides low noise power and protects the output against overloads or shorts.
