MPM3804GG

Synchronous Regulator

MPM3804GG Features

* include cycle-by-cycle current limiting and thermal shutdown. The MPM3804 is ideal for a wide range of applications, including high-performance DSPs, wireless power, portable and mobile devices, and other low-power systems. The MPM3804 requires a minimal number of readily available, standard, extern

MPM3804GG General Description

The MPM3804 is a DC/DC module that includes a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs and an inductor. The MPM3804 achieves 0.6A of continuous output current from a 2.3V to 5.5V input voltage range with excellent load and line regulation. The output voltage.

MPM3804GG Datasheet (833.00 KB)

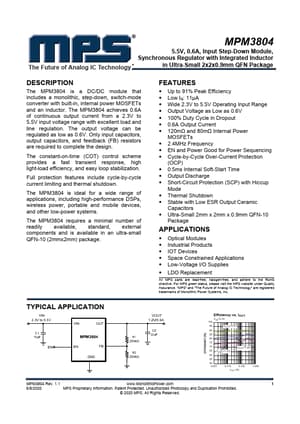

Preview of MPM3804GG PDF

Datasheet Details

Part number:

MPM3804GG

Manufacturer:

MPS

File Size:

833.00 KB

Description:

Synchronous regulator.
The Future of Analog IC Technology MPM3804 5.5V, 0.6A, Input Step-Down Module, Synchronous Regulator with Integrated Inductor in Ultra-Small 2x2x0.9m.
