MPM-02V - Board Mount AC/DC Power Supplies

MPM-02V Description

MPM-02V Series Ultra Wide Input, 2W Miniature, Board Mount AC/DC Power Supplies Electrical Specifications Key .

MPM-02V Features

* 2W Output Power
* Universal 85-305 VAC Input
* EN 60950 Approved (UL)
* Meets IEC Safety Class II
* -25ºC to +70ºC Operation
* Single Regulated Output
* >300 kHour MTBF
* Ultra-Miniature DIP Case Specifications typical @ +25°C, 230 V

MPM-02V Applications

* where noise sensitivity is critical, a recommended circuit is given below. 4. It is recommended that a fuse be used on the input of a power supply for protection. For the MPM-02V series, a 0.5A/250 VAC slow blow should be used. Typical Connection The diagram above illustrates a typical application

📥 Download Datasheet

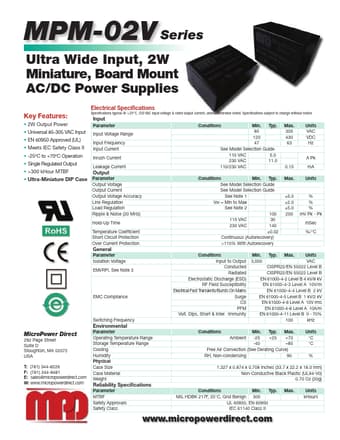

Preview of MPM-02V PDF
datasheet Preview Page 2

Datasheet Details

Part number
MPM-02V
Manufacturer
MicroPower Direct
File Size
342.32 KB
Datasheet
MPM-02V_MicroPowerDirect.pdf
Description
Board Mount AC/DC Power Supplies
