MPM-03, 3W Ultra-Miniature DIP AC/DC Power Supplies

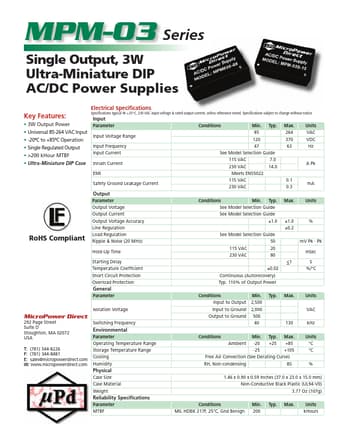

MPM-03 Series Si l Output, Single O 3W Ultra-Miniature DIP AC/DC Power Supplies Electrical Speciﬁcations Key .

datasheet Preview Page 1 from Datasheet4u.com

MPM-03_MicroPowerDirect.pdf

MPM-03 Datasheet Preview — Preview of MPM-03 PDF

Datasheet Details

Part number:

MPM-03

Manufacturer:

MicroPower Direct

File Size:

243.57 KB

Description:

3W Ultra-Miniature DIP AC/DC Power Supplies

Features

* 3W Output Power
* Universal 85-264 VAC Input
* -20ºC to +85ºC Operation
* Single Regulated Output
* >200 kHour MTBF
* Ultra-Miniature DIP Case Speciﬁcations typical @ +25°C, 230 VAC input voltage & rated output current, unless otherwise noted. Spec

Applications

* the input ﬁltering circuit (inside the dotted boxes) may be added. The ﬁlter consists of: Cx: Capacitors C1, C2 and C3 are 0.01 µF/275V CY: 102 kµF/400V T1: Common mode choke, UU9.8 or ring core. Inductance is about 10 mH & wire diameter of 0.22 mm. 4. The MOV is added for protection. Recommended i
