MPM3811 - 1A Power Module

MPS

📥 Download Datasheet

MPM3811 Datasheet Preview — Preview of MPM3811 PDF

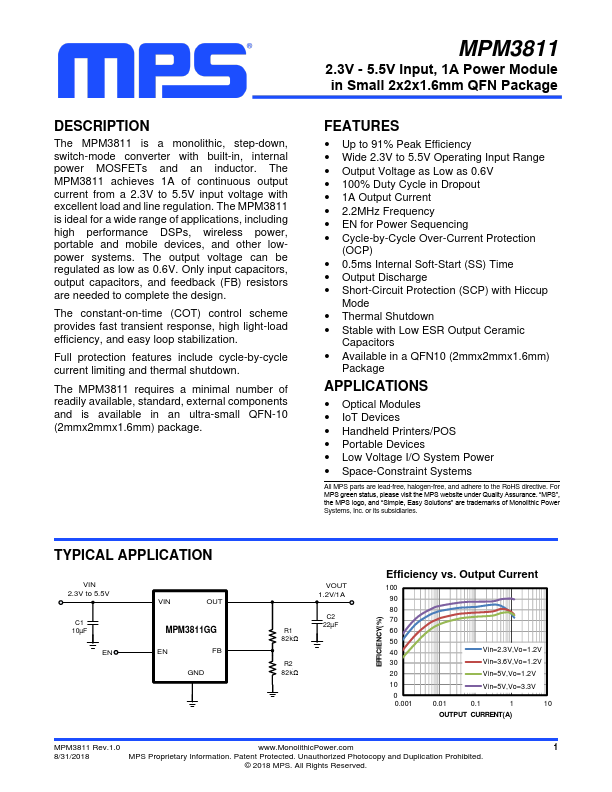

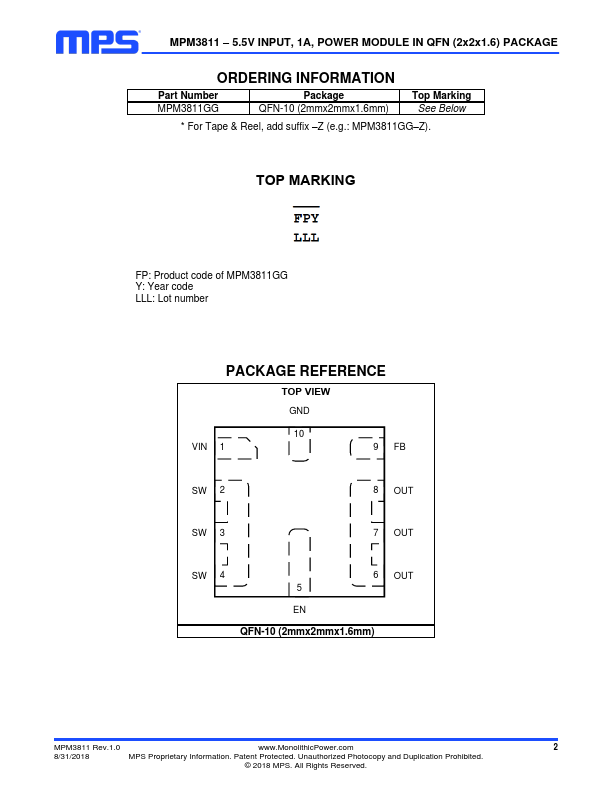

datasheet Preview Page 2

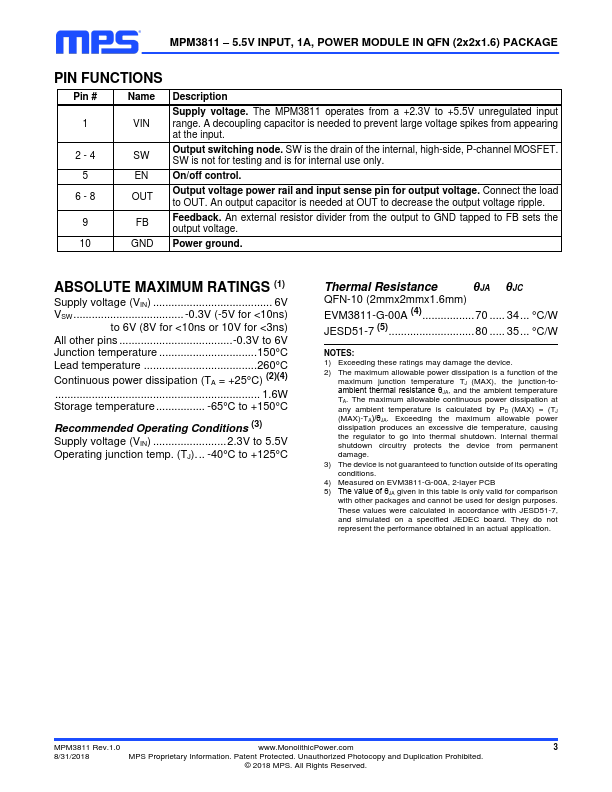

datasheet Preview Page 3

Datasheet Details

Part number	MPM3811
Manufacturer	MPS
File Size	1.09 MB
Description	1A Power Module
Datasheet	MPM3811-MPS.pdf

MPM3811 Product details

Description

The MPM3811 is a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs and an inductor.

Features

include cycle-by-cycle current limiting and thermal shutdown. The MPM3811 requires a minimal number of readily available, standard, external components and is available in an ultra-small QFN-10 (2mmx2mmx1.6mm) package. MPM3811 2.3V - 5.5V Input, 1A Power Module in Small 2x2x1.6mm QFN Package.
