MPQ3369-AEC1 - Boost WLED Driver

MPS

📥 Download Datasheet

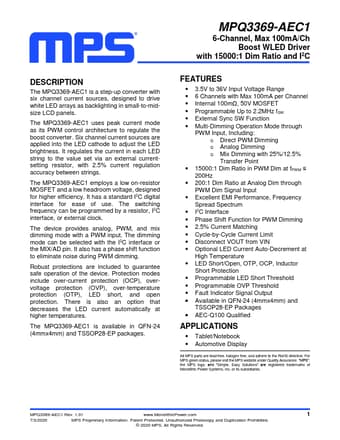

MPQ3369-AEC1 Datasheet Preview — Preview of MPQ3369-AEC1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPQ3369-AEC1
Manufacturer	MPS
File Size	1.21 MB
Description	Boost WLED Driver
Datasheet	MPQ3369-AEC1-MPS.pdf

MPQ3369-AEC1 Product details

Description

The MPQ3369-AEC1 is a step-up converter with six channel current sources, designed to drive white LED arrays as backlighting in small-to-midsize LCD panels.

Features

3.5V to 36V Input Voltage Range.
6 Channels with Max 100mA per Channel.
Internal 100mΩ, 50V MOSFET.
Programmable Up to 2.2MHz fSW.
External Sync SW Function.
Multi-Dimming Operation Mode through PWM Input, Including: o Direct PWM Dimming o Analog Dimming o Mix Dimming with 25%/12.5% Transfer Point.
15000:1 Dim Ratio in PWM Dim at fPWM ≤ 200Hz.
200:1 Dim Ratio at Analog Dim through PWM Dim Signal Input.
Excellent EMI Performance, Frequency Spread Spec.
