MPQ3369GR, MPQ3369 - Maximum 100mA/Ch Boost WLED Driver

MPS

📥 Download Datasheet

MPQ3369GR Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ3369GR, MPQ3369. Please refer to the document for exact specifications by model.

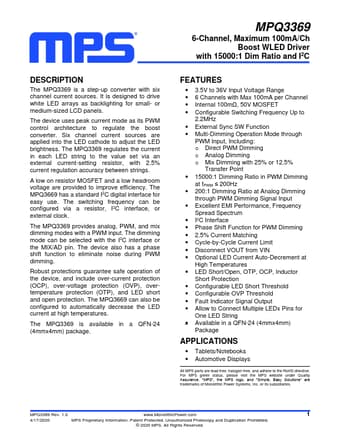

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPQ3369GR, MPQ3369
Manufacturer	MPS
File Size	1.46 MB
Description	Maximum 100mA/Ch Boost WLED Driver
Datasheet	MPQ3369-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MPQ3369GR, MPQ3369. Please refer to the document for exact specifications by model.

MPQ3369GR Product details

Description

The MPQ3369 is a step-up converter with six channel current sources.

Features

3.5V to 36V Input Voltage Range.
6 Channels with Max 100mA per Channel.
Internal 100mΩ, 50V MOSFET.
Configurable Switching Frequency Up to 2.2MHz.
External Sync SW Function.
Multi-Dimming Operation Mode through PWM Input, Including: o Direct PWM Dimming o Analog Dimming o Mix Dimming with 25% or 12.5% Transfer Point.
15000:1 Dimming Ratio in PWM Dimming at fPWM ≤ 200Hz.
200:1 Dimming Ratio at Analog Dimming through PWM Dimming Signal Input.
Excellent.
