MPQ6612A-D, MPQ6612A - H-Bridge DC Motor Driver

MPS

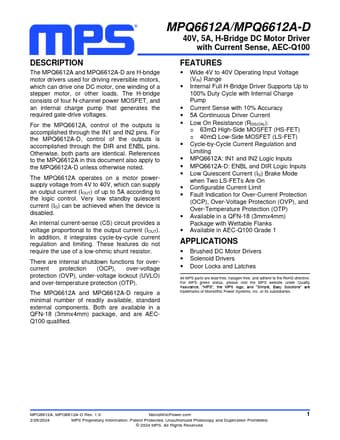

MPQ6612A-D Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ6612A-D, MPQ6612A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MPQ6612A-D, MPQ6612A
Manufacturer	MPS
File Size	558.74 KB
Description	H-Bridge DC Motor Driver
Datasheet	MPQ6612A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MPQ6612A-D, MPQ6612A. Please refer to the document for exact specifications by model.

MPQ6612A-D Product details

Description

The MPQ6612A and MPQ6612A-D are H-bridge motor drivers used for driving reversible motors, which can drive one DC motor, one winding of a stepper motor, or other loads.

Features

do not require the use of a low-ohmic shunt resistor. There are internal shutdown functions for overcurrent protection (OCP), over-voltage protection (OVP), under-voltage lockout (UVLO) and over-temperature protection (OTP). The MPQ6612A and MPQ6612A-D require a minimal number of readily available, standard external components. Both are available in a QFN-18 (3mmx4mm) package, and are AECQ100 qualified.
