MPQ6614GDE-AEC1, MPQ6614-AEC1 Datasheet - MPS

MPQ6614GDE-AEC1 H-Bridge DC Motor Driver

The MPQ6614-AEC1 is an H-bridge motor driver used for driving reversible motors. It can drive one DC motor, one winding of a stepper motor, or other loads. The H-bridge consists of four N-channel power MOSFETs, and an internal charge pump generates the gate driver voltages. The MPQ6614-AEC1 operates.

MPQ6614GDE-AEC1 Features

* do not require the use of a low-ohmic shunt resistor. The MPQ6614-AEC1 has a pulse-width modulation (PWM) input interface, which is compatible with industry-standard devices. A brake is applied when stopping the motor. When disabled, the MPQ6614-AEC1 can achieve a low standby circuit current. Intern

MPQ6614-AEC1-MPS.pdf

This datasheet PDF includes multiple part numbers: MPQ6614GDE-AEC1, MPQ6614-AEC1. Please refer to the document for exact specifications by model.

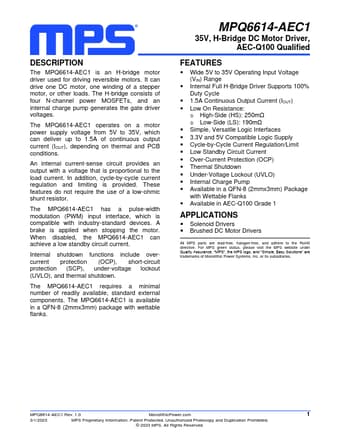

MPQ6614GDE-AEC1 Datasheet Preview Page 2 MPQ6614GDE-AEC1 Datasheet Preview Page 3

Datasheet Details

Part number:

MPQ6614GDE-AEC1, MPQ6614-AEC1

Manufacturer:

MPS

File Size:

595.35 KB

Description:

H-bridge dc motor driver.

Note:

This datasheet PDF includes multiple part numbers: MPQ6614GDE-AEC1, MPQ6614-AEC1.
Please refer to the document for exact specifications by model.
