MT3256S, MT3256, 60V 50A N-Channel Power MOSFET

MT3256/S N-Channel 60V/50A Power MOSFET .
These N-Channel enhancem ent m ode power field effect transistors ar e produced using Mos-tech’s proprietary, planar stripe, DMOS technology.

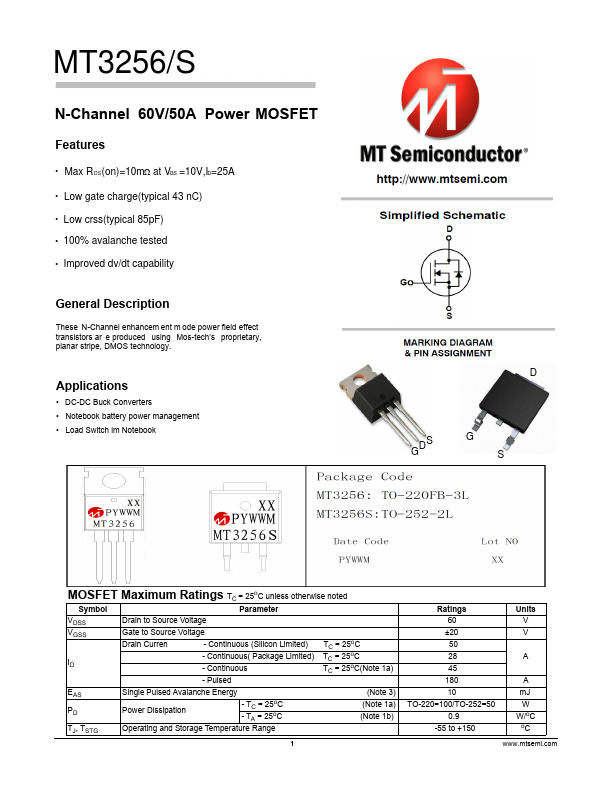

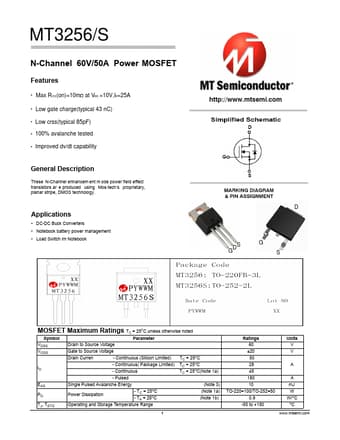

datasheet Preview Page 1 from Datasheet4u.com

MT3256-MTSemiconductor.pdf

MT3256S Datasheet Preview — This datasheet PDF includes multiple part numbers: MT3256S, MT3256. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MT3256S, MT3256

Manufacturer:

MT Semiconductor

File Size:

3.75 MB

Description:

60V 50A N-Channel Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: MT3256S, MT3256.
Please refer to the document for exact specifications by model.

Features

* Max RDS(on)=10mΩ at VGS =10V,ID=25A
* Low gate charge(typical 43 nC)
* Low crss(typical 85pF)
* 100% avalanche tested

Applications

* DC-DC Buck Converters
* Notebook battery power management
* Load Switch im Notebook MT3256 D GDS G S MOSFET Maximum Ratings TC = 25oC unless otherwise noted Symbol Parameter VDSS Drain to Source Voltage VGSS ID Gate to Source Voltage Drain Curren - Continuous (
