MT4832 Datasheet - MT Semiconductor

MT4832, 30V 10A Dual N-Channel MOSFET

MT4832 30V 10A Dual N-Channel MOSFET Product Summary VDS=30V RDS(ON) = 10mΩ @VGS=10V,ID=5A RDS(ON) =12mΩ @VG.

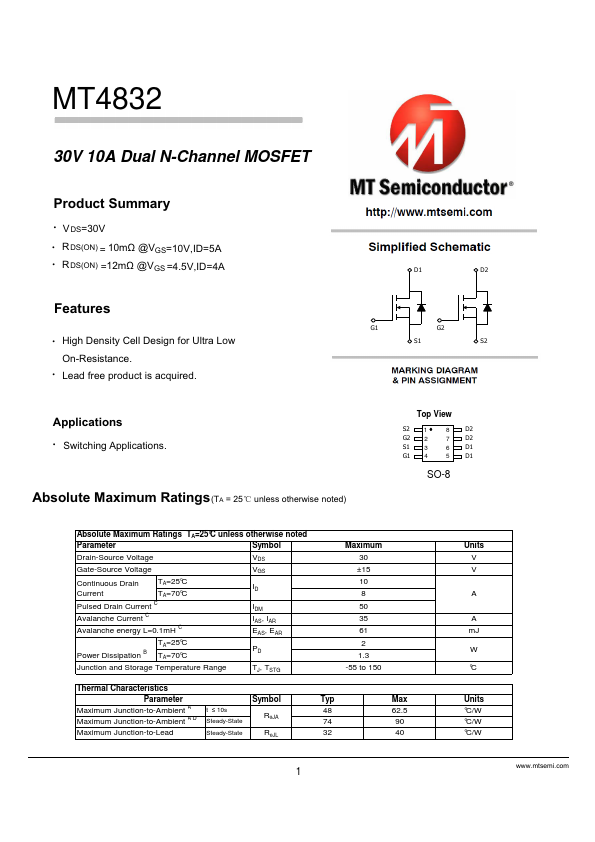

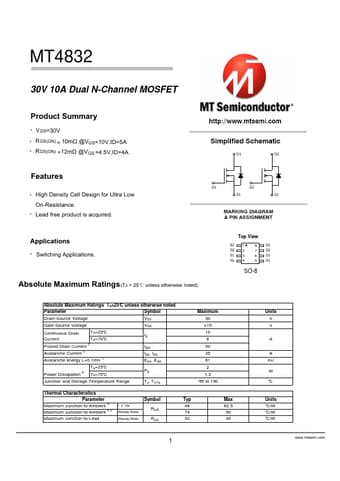

datasheet Preview Page 1 from Datasheet4u.com

MT4832-MTSemiconductor.pdf

MT4832 Datasheet Preview — Preview of MT4832 PDF

Datasheet Details

Part number:

MT4832

Manufacturer:

MT Semiconductor

File Size:

1.51 MB

Description:

30V 10A Dual N-Channel MOSFET

Applications

* Absolute Maximum Ratings(TA = 25 unless otherwise noted) Top View S2 1 G2 2 S1 3 G1 4 8 D2 7 D2 6 D1 5 D1 SO-8 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current TA=70°C Pulse
