RF-370CA Datasheet - Mabuchi

RF-370CA Motor

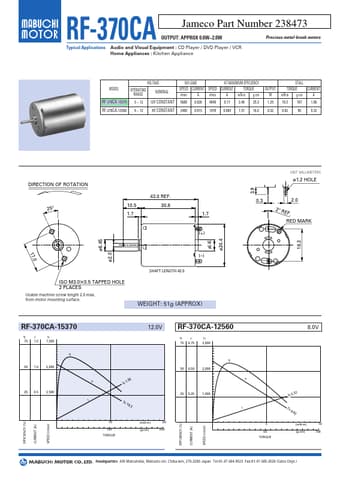

RF-370CA Jameco Part Number 238473 OUTPUT: APPROX 0.6W~2.0W Precious metal-brush motors Typical Applications Audio and Visual Equipment : CD Player / DVD Player / VCR Home Appliances : Kitchen Appliance MODEL VOLTAGE OPERATING RANGE NOMINAL RF-370CA-15370 3 ~ 12 12V CONSTANT RF-370CA-12560 4 ~ 12 8V CONSTANT NO LOAD AT MAXIMUM EFFICIENCY SPEED CURRENT SPEED CURRENT TORQUE r/min A r/min A mN m g cm 5600 0.026 4840 0.17 2.48 25.3 2400 0.015 1970 0.069 1.57 16.0 OUTPUT W 1.2.

RF-370CA_Mabuchi.pdf

RF-370CA Datasheet Preview — Preview of RF-370CA PDF

Datasheet Details

Part number:

RF-370CA

Manufacturer:

Mabuchi

File Size:

51.77 KB

Description:

Motor.
