RF-370CH-10500-MV, RF-370CH-14320-MV Datasheet (Transmotec)

RF-370CH-10500-MV, RF-370CH-14320-MV, DC Motor

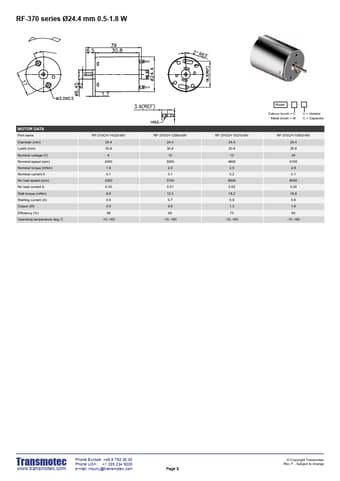

RF-370 series Ø24.4 mm 0.5-1.8 W MODEL NO.

DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg.

C RF-370CH-14320-MV 24.4 30.8 6 2400 1.8 0.1 3200 0.03 8.8 0.5 0.5 58 -10..+60 RF-370CH-12560-MV 24.4 30.8 12 3000 2.0 0.1 3700 0.01 12.3 0.7 0.6 62 -10..+60 RF-370CH-15370-MV 24.4 30
