MM50G3T120BM IGBT

MM50G3T120BM Description

June 2020 Version 01 MM50G3T120BM 1200V 50A IGBT RoHS Compliant PRODUCT .

MM50G3T120BM Features

* IGBT chip in trench FS-technology
* Low switching losses
* VCE(sat) with positive temperature coefficient
* Fast switching and short tail current

MM50G3T120BM Applications

* High frequency switching application
* Medical applications
* Motion/servo control
* UPS systems 1 2 3 1.Gate 2.Collector 3.Emitter Type VCES IC MM50G3T120BM 1200V 50A VCE(sat) TJ=25°C 1.8V TJmax 175°C Marking MM50G3T120BM Package TO-247 Plus ABSOLUTE MAXI

📥 Download Datasheet

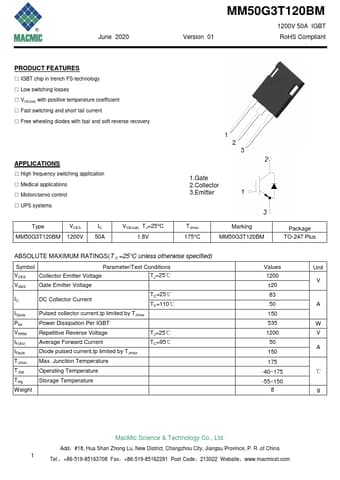

Preview of MM50G3T120BM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MM50G3T120BM
Manufacturer
MacMic
File Size
340.82 KB
Datasheet
MM50G3T120BM-MacMic.pdf
Description
IGBT
