MM5005 Datasheet - Seme LAB

MM5005 Bipolar PNP Device

MM5005 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar PNP Device in a Hermetically sealed TO39 Metal Package. Bipolar PNP Device. 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. VCEO = 60V 5.08 (0.200) typ. IC = 2A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANT.

MM5005 Datasheet (11.12 KB)

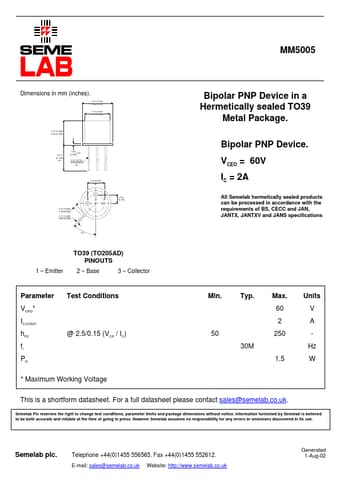

Preview of MM5005 PDF

Datasheet Details

Part number:

MM5005

Manufacturer:

Seme LAB

File Size:

11.12 KB

Description:

Bipolar pnp device.
